oshyn: OpenText™ Content Server & Management Server Integration

by: Carlos Martinez

OpenText Content Server is a robust, yet very flexible Enterprise Content Management System. It offers great functionality when searching for information that has been loaded into it. This information includes documents, folders, discussions, and other Content Server items.

Searches can be as simple or as complex as you need. They can also be based on the item’s content or on metadata that has been defined for each of the loaded objects.

Better yet, this behavior is now accessible from OpenText Management System. You can now integrate documents from the Content Server repository into your CMS projects and look for them using all of the search capabilities offered by Content Server.

To use this functionality, OpenText offers a connector between Content Server and Management Server called the Native Bridge to Livelink 10.0 or Livelink DM Interface. Because it supports earlier versions of Content Server, under the name Livelink ECM – Enterprise Server, the name Livelink DM Interface is still retained in the software and the documentation provided.

Livelink DM Interface consolidates the following areas:

  • Document Management
    In Content Server, you manage your documents as usual.
  • (Web) Content Management
    You use the SmartEdit and SmartTree user interfaces in Management Server to create and maintain your Web site.

Livelink DM Interface allows the convenient integration of documents from the Document Management System into your web site. You can access documents through the Content Server Web interface, which is integrated in the Management Server workflow.

When using documents from Content Server, you can decide how the documents are to be integrated. You can make the document available as a copy (current snapshot) in a published folder of Management Server. Alternatively, a link (secured link) to the document in Content Server is created on the published page. In addition to the integrated documents, the metadata of the documents can also be displayed in the web site.

Installing this module requires that you do some changes in both, Content Server and Management Server installations:

  • Customize Management Server:  Use the installation program to help you import the Connectivity Interface and Livelink Content element.
  • Customize Content Server:  Install the Livelink module on Content Server and expand the database accordingly.

For information please refer to Installation section in the documentation provided as part of the module’s downloadable file available here


Searching for Documents

The Livelink Content element which can be inserted in any of your Content Classes defined in Management Server lets you run a search for documents that are managed in Content Server.

You can obtain search results in different ways:

  • Using a saved search from Content Server
  • Using a manual query that queries specific metadata
  • Using a complex query in LQL (Livelink Query Language).

Depending on the search settings, the search result is returned as a list of available documents.

To search for documents using a manual query in Content Server and display the search results in Management Server projects, you must perform the steps these steps:

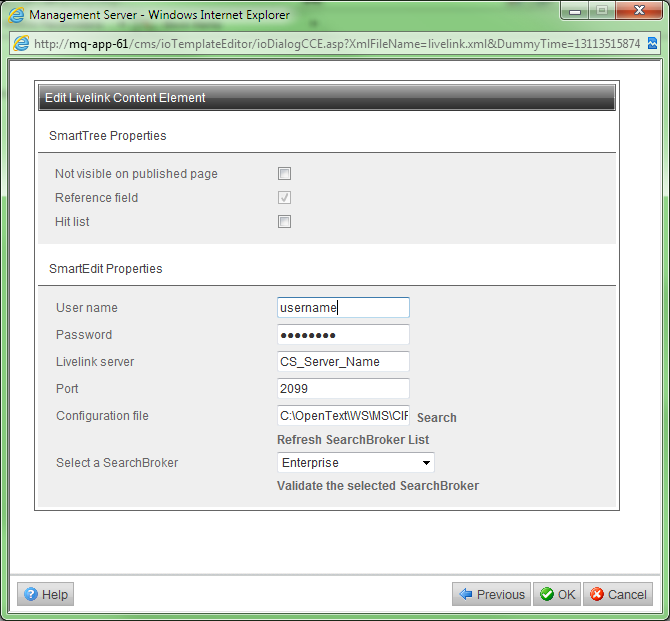

1. Create and edit Livelink Content element (reference element)

In a content class, create a Livelink Content element (reference element) where you enter the data for accessing Content Server. You must edit two dialogs.

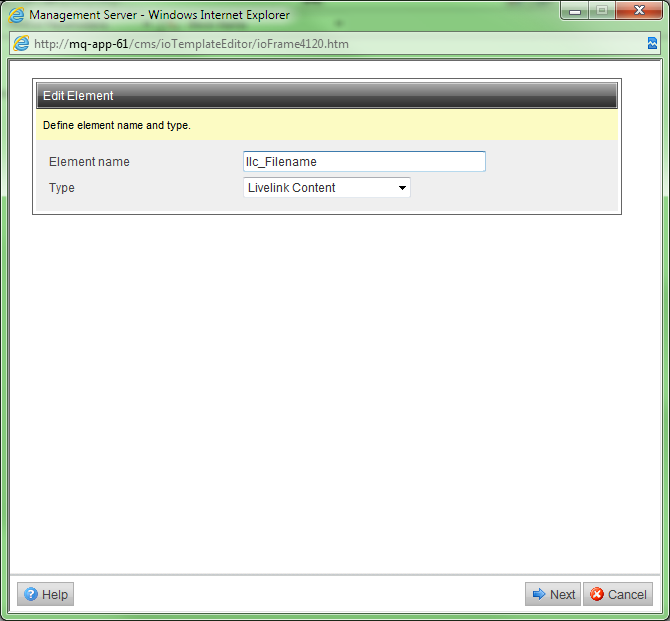

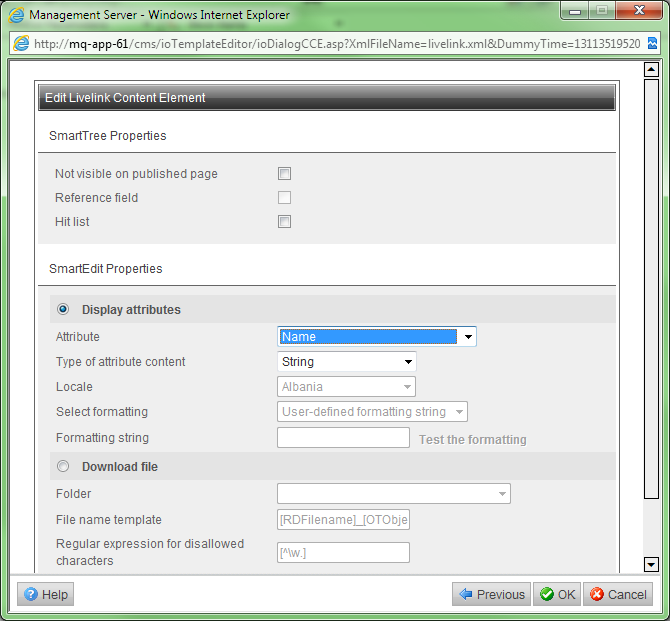

2. Create and edit Livelink Content element

Create a Livelink Content element to be able to display a document attribute in the search result on a published page or to make a link available in the search result for downloading the document that was found. Insert this Livelink Content element in your template. You can create multiple Livelink Content elements in one template. To create these Livelink Content elements, you will need to edit two dialogs for each.




3. Set block marks

When you have created all Livelink Content elements in the template, enclose the placeholders with the Database Query block mark (IoRangeData). For example:

<!IoRangeData>
  <%llc_Reference%>
  <%llc_Filename%>
<!/IoRangeData>

Note: The Database Query block mark can only be used once in each template; but the block mark may contain several Livelink Content elements.


4. Create the page based on the content class

To have the search results displayed, create a page based on the content class in which the Livelink Content elements are defined.

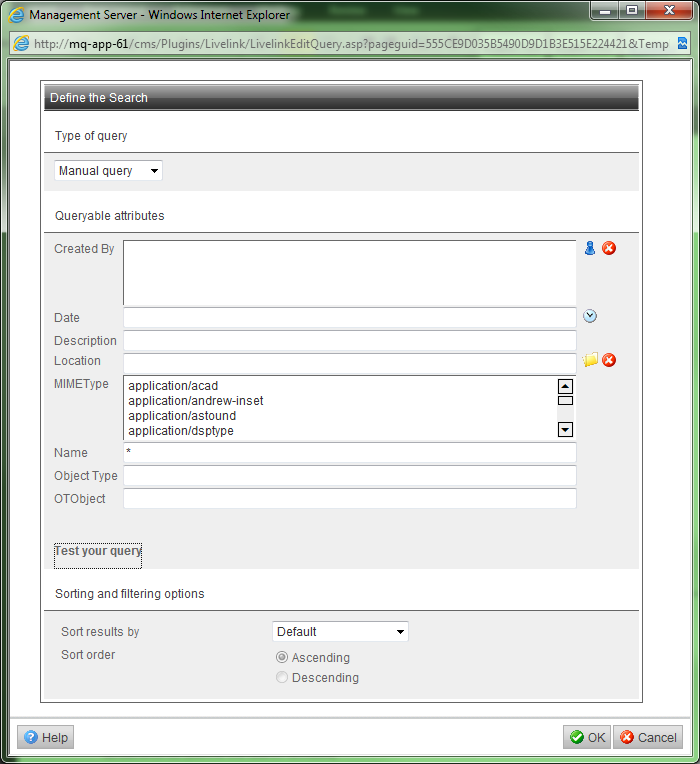

5. Define the search

Define a search query using the page previously created.

  • To view the search results on a published page, select Show Page Preview in the Action Menu.

Livelink DM Interface enhances the functional value of your site by making the latest documentation available immediately to your website’s visitors.
